Intel Starfire: EDAC support is not space qualification

On this page
  1. A five-line addition with a specific scope
  2. Monitoring and qualification answer different questions
  3. Compare useful work under the mission constraints

The first Starfire EDAC change reuses a known memory-controller configuration. It adds an observability path, not proof that an entire computer is ready for a space mission.

Starfire evidence boundaries: matching device ID 0xb02b, a verified EDAC reporting path and mission-specific qualification are distinct. Intel’s August brochure still marks radiation characterization in progress.
Starfire evidence boundaries: matching device ID 0xb02b, a verified EDAC reporting path and mission-specific qualification are distinct. Intel’s August brochure still marks radiation characterization in progress. Chart : PeopleAreGeek. Data source.
View full-size image

A five-line addition with a specific scope

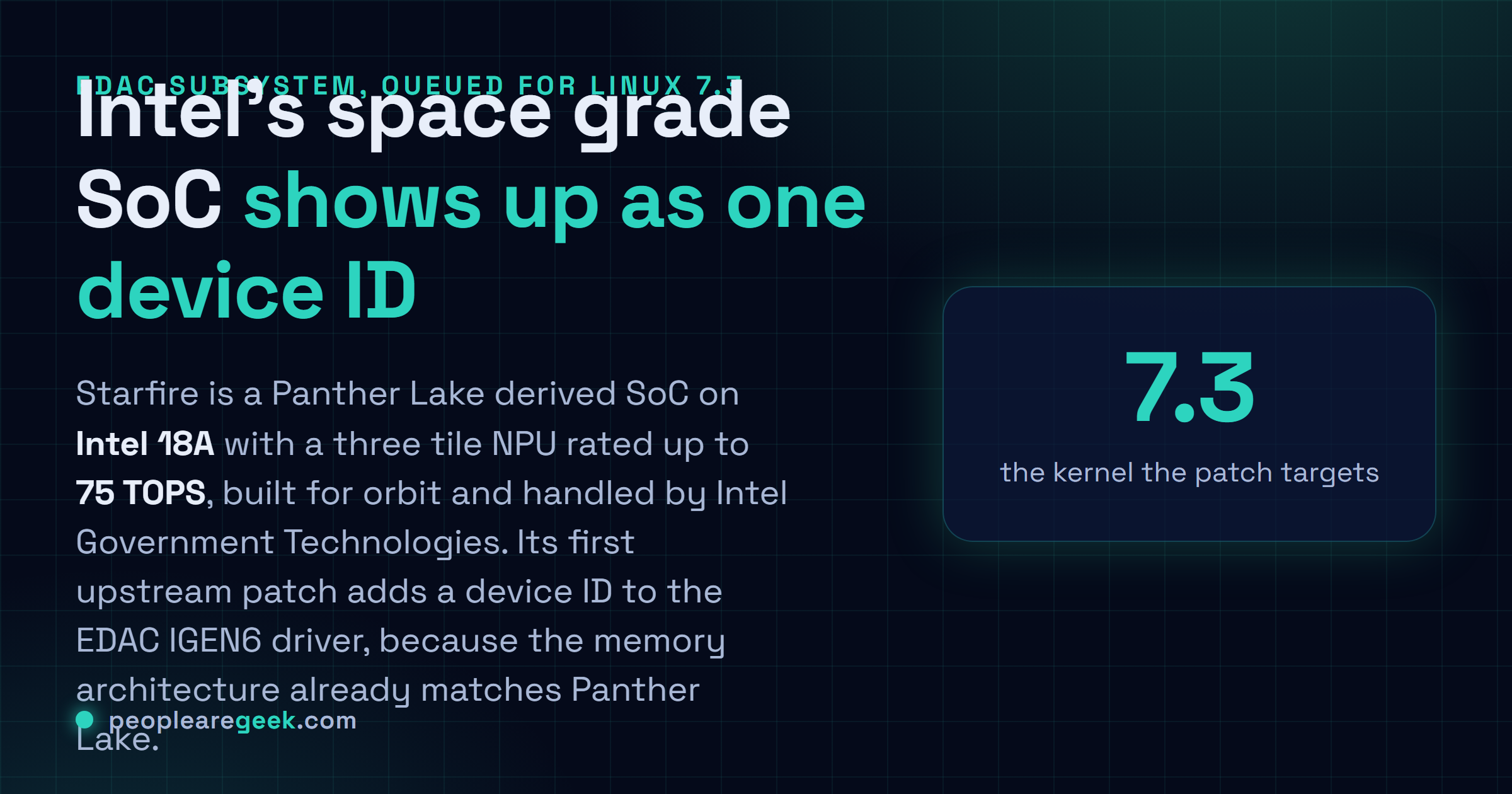

The upstream commit adds compute-die ID 0xb02b and reuses Panther Lake’s EDAC configuration. It is visible in the 7.3-rc2 history. The change concerns error detection/reporting for the memory subsystem, not every Starfire peripheral.

The Intel brochure updated August 27, page 5, now lists up to 45 and 80 total TOPS for the 10W and 35W variants. These are total figures, not NPU-only throughput. It still labels TID, SEL and SEE characterization as in progress. The previous 75-TOPS headline is therefore no longer the current brochure value.

Monitoring and qualification answer different questions

Our diagram separates three stages: driver recognition, an error-reporting path and mission-specific qualification. Seeing an EDAC driver bind can establish that software recognized a supported identifier. It cannot establish radiation tolerance, thermal behaviour over a mission profile or the recovery of an application after an upset.

Likewise, an empty error counter has two possible readings: no reported errors during the interval, or a monitoring path that has not been shown to work. Record the driver, exposed counters and collection interval before interpreting a dashboard’s zero as evidence of health.

Compare useful work under the mission constraints

For onboard inference, specify the model, numerical precision, latency target and power envelope. A combined TOPS figure cannot directly predict how quickly one model runs on one engine. Data movement, supported operators and scheduling also matter.

The Linux addition is useful progress toward integrating the platform. Selecting it for a mission still requires the appropriate hardware qualification and workload evidence. This article reviews public code and Intel’s brochure; it does not report a radiation test or an onboard inference benchmark.

September 8: verify EDAC support in 7.3-rc2 and update the August 27 brochure to 80 total TOPS; distinguish monitoring from radiation qualification.
