Samsung Foundry: why a 15% rise is not one price

On this page
  1. Read the reported ranges
  2. Wafer price and usable-chip cost can move differently
  3. Separate outlook from achieved profitability

Reports of higher Samsung Foundry pricing describe selected processes and customer groups. They do not establish a uniform 15% increase for every chip made by Samsung or every device containing one.

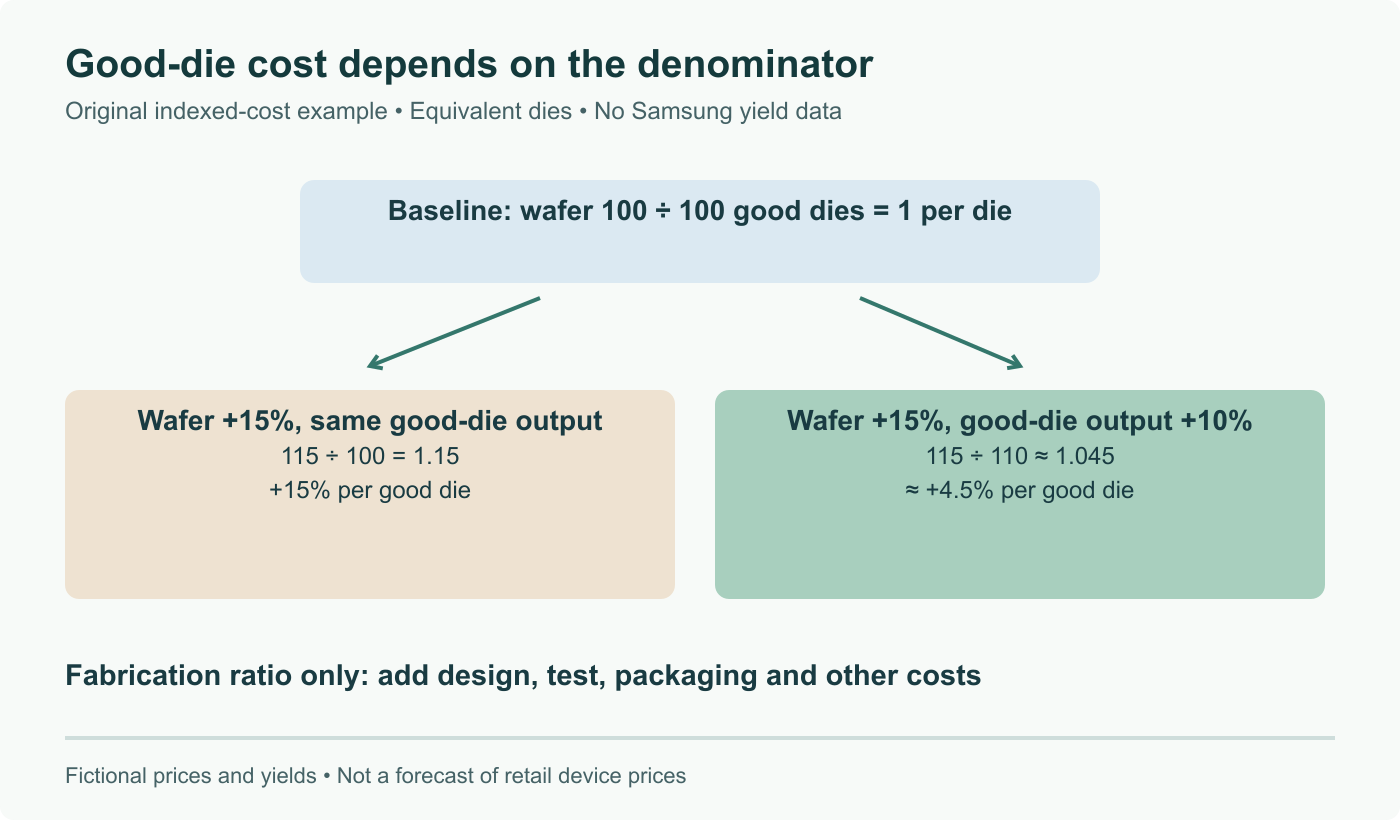

Original indexed-cost example: wafer cost 100 with 100 good dies gives 1 per die. At wafer cost 115, unchanged yield gives 1.15; 110 good dies gives about 1.045. Fictional equivalent dies; packaging, test and design costs excluded.
Original indexed-cost example: wafer cost 100 with 100 good dies gives 1 per die. At wafer cost 115, unchanged yield gives 1.15; 110 good dies gives about 1.045. Fictional equivalent dies; packaging, test and design costs excluded. Chart : PeopleAreGeek. Data source.
View full-size image

Read the reported ranges

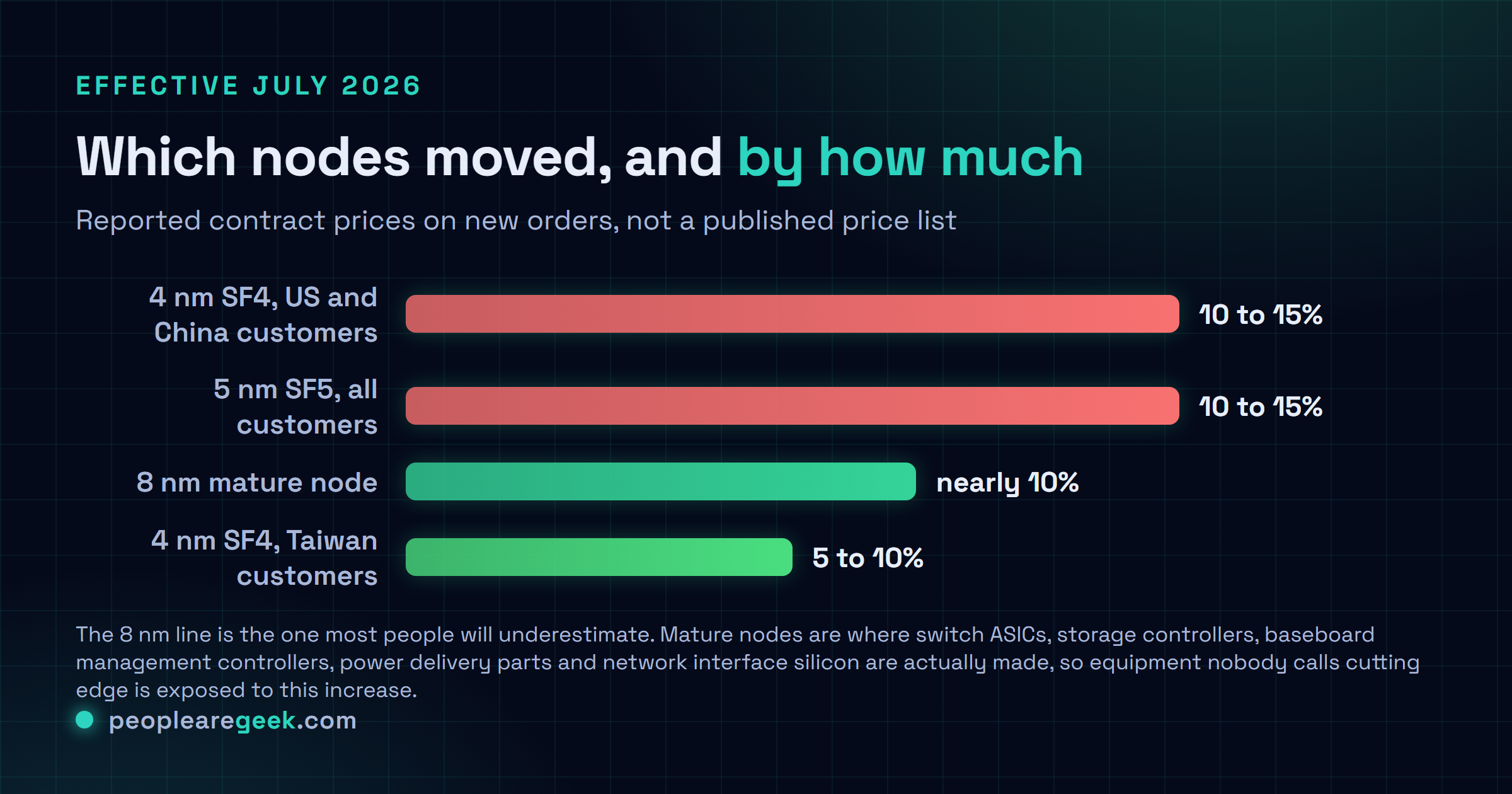

The Reuters report carried by Free Malaysia Today attributes July increases to two people familiar with the matter. It describes SF4 rises of 10-15% for US and Chinese customers and 5-10% for Taiwanese customers, 10-15% for SF5 and roughly 10% for 8 nm. Samsung declined to comment on operational details.

These are reported negotiated increases, not a public universal tariff sheet. A node label alone does not specify volume, wafer commitment, process variant, packaging or the timing of a contract renewal. The US and Chinese ranges in this account are the same; singling out China as uniquely paying the highest increase misreads the comparison.

Wafer price and usable-chip cost can move differently

Consider a deliberately simplified example with cost indexed to 100 and 100 usable dies per wafer. Fabrication cost per good die is one index unit. If wafer cost rises to 115 with the same output, cost per good die rises 15%.

If usable output instead rises to 110 dies, the calculation becomes 115 divided by 110, or approximately 1.045. The cost per good die then rises about 4.5%, despite the same 15% wafer-price increase. These are fictional yields and prices, not disclosures about Samsung production. The cover makes both branches visible.

This simple ratio excludes masks, design work, test, packaging and logistics. It also assumes dies are equivalent. Comparing a redesigned chip with a different die area would require a new calculation rather than reusing the original denominator.

Separate outlook from achieved profitability

Samsung's July 30 results statement describes improved foundry earnings before incentive-related provisions and targets double-digit foundry revenue growth in the second half. It plans to expand 4 nm LPU and base-die sales and ramp second-generation 2 nm mobile products.

A revenue-growth target is not proof of an already achieved profit margin. Nor does a wafer-price report predict a fixed retail price rise six or twelve months later. For a product budget, request the actual process and contract quote, expected good-die output and the remaining manufacturing costs. That gives a defensible unit-cost estimate; applying 15% to the entire finished device does not.

Attribute reported node and customer price ranges, distinguish outlook from profitability, explain wafer price versus good-die cost using hypothetical yield arithmetic.
